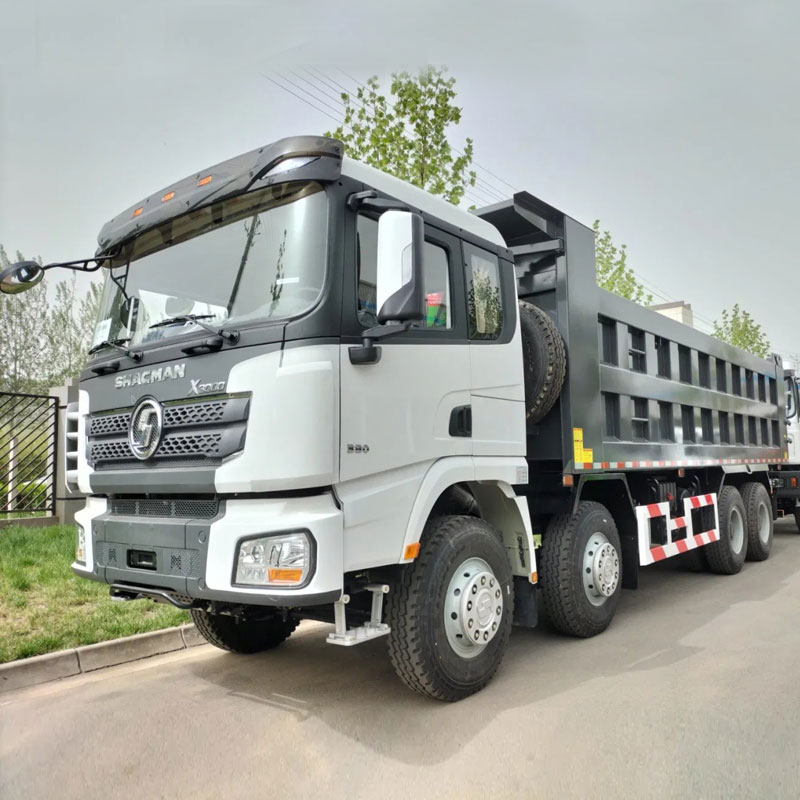

SHACMAN X3000 Dump Trucks
The Shacman X3000 Dump Truck is engineered for performance and durability, making it an excellent choice for construction, mining, and heavy-duty logistics. With its robust build and advanced features, this truck is designed to handle the toughest jobs while delivering reliability and efficiency.
Key Features
Powerful Engine Options: Choose between Weichai and Cummins engines. While Cummins offers superior performance, Weichai is easier to maintain, ensuring you have the right powertrain for your needs.
Customizable Gearbox: Options include the reliable FAST manual gearbox and the EATON automatic transmission, providing flexibility to match your driving style.
Versatile Lifting System: Equipped with either HYVA or competitive Chinese brand hydraulic systems for efficient load handling.
Adjustable Dumper Size: Customize the height and thickness of the dump box to suit various cargo requirements.
Comfortable Cab Options: The X3000 cab is designed for driver comfort, featuring advanced ergonomic design. Choose from multiple cab configurations, including the popular F3000 and H3000 series.
Parameters:
| MODEL | SX33156T366 | |
| Driver position | Left Hand | |
| Cab | Medium length flat top | |
| Driving type | 8*4 | |
| Wheelbase | 1800+3575+1400 | |
| Max. Speed(km/h) | 80 km/h | |
| Engine | Brand | WEICHAI |
| Model | WP10.380E22 | |
| Emission Standard | EURO II | |
| Rated output power(PS) | 400HP/ 294KW | |
| Displacement (L) |
9.726 L | |
| Transmission | Brand | FAST |
| Model | 12JSD200T-B+QH50 | |
| Front axle | Brand | HANDE |
| Model | MAN 9.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN double reduction driving axle Speed ratio 4.769 |
|
| Clutch | ¢430 diaphragm clutch¢430 | |
| Frame | 850×320(8+7+8) | |
| Suspension | multiple leaf springs front and rear/four main spring + four bolts | |
| Fuel tank | 300 L Aluminum alloy | |
| Wheels and tires | 12.00 R20 (12+1) | |
| Brakes | Running brake: Dual circuit compressed air brake | |
| Parking brake: Air discharging with spring control | ||
| Auxiliary brake: Engine exhaust brake | ||
| Cabin | Hydraulic main seat, four point hydraulic suspension cab, electrically controlled automatic constant temperature air conditioning, electric window shaker, ordinary rearview mirror, manual flipping, telescopic shaft operation, ordinary air filter, daytime running lights, metal bumper, hinged boarding pedal, water tank protective grille, 180Ah maintenance-free battery, SHACMAN logo, all English logo | |
