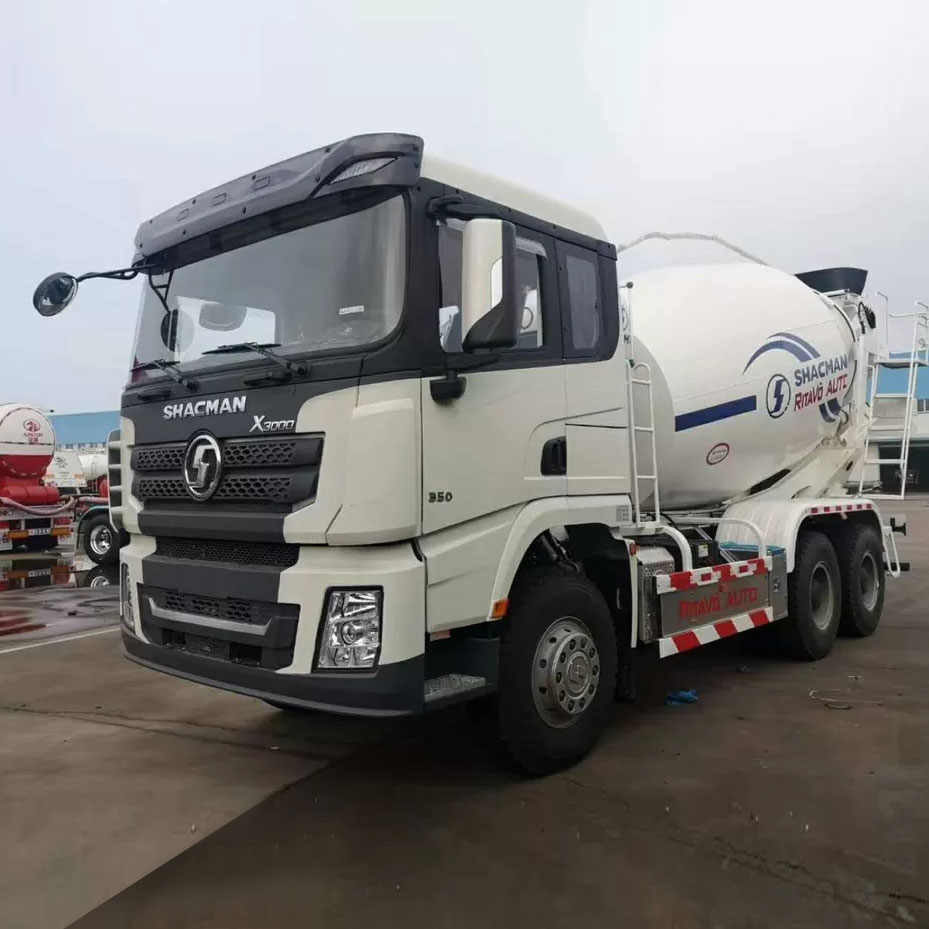

SHACMAN X3000 Concrete Mixer Trucks Description
The SHACMAN X3000 Concrete Mixer Trucks are powerful 6×4 vehicle designed for efficient concrete transportation. With a gross vehicle weight of up to 50 tons, it combines robust engineering with advanced features for reliable performance in construction projects.
Key Features
Engine: Equipped with a 336 HP WEICHAI WP10.336E53 engine, meeting Euro V emission standards to ensure environmental compliance.
Drive Configuration: The 6×4 setup enhances load distribution and traction, making it suitable for various terrains.
Mixing Drum: A rear-mounted rotating drum guarantees thorough mixing, maintaining concrete quality during transit.
High Performance: Maximum speed of 65 km/h, making it a practical choice for timely deliveries.
Parameters:
| Model | SX5258GJBHR384 |
|---|---|
| Drive Type | 6×4 |
| Weight | Gross Vehicle Weight ≤ 50 |
| Dimensions | Wheelbase/(mm) 3775+1400 mm |
| Performance | Maximum speed/(km/h) 50～65/90 |
| Ground Clearance | > 314 mm |
| Engine Brand | WEICHAI |
| Engine Model | WP10.336E53+PTO |
| Power/(kw/HP) | 247 kW / 336 HP |
| Maximum Torque/(N.M)/rpm | 1550 N·M |
| Displacement/(L) | 9.726 L |
| Emission Standard | Euro V |
| Gear Box Brand | FAST |
| Gear Box Model | 10JSD180 |
| Clutch Type | φ430 Diaphragm spring clutch |
| Cooling Type | Domestic heat sink |
| Air Inlet Type | Ordinary air filter |
| Brakes Type | Drum brake |
| Service Brake | Double circuit air brake |
| Park Brake | Rear wheel spring brake |
| Auxiliary Brake | WEVB engine exhaust brake |
| Steering Type | ZF8098 technology, circulating ball steering machine |
| Chassis Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) |
| Suspension Front | Multi-layer plate spring 4 main plates + 4 U-shaped bolts |
| Suspension Rear | Multi-layer plate spring 4 main plates + 4 U-shaped bolts |
| Axles Brand | HANDE |
| Front Axle | 9.5T front axle MAN technology |
| Rear Axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 |
| Tires Type | 12.00R20 |
| Fuel Tank Capacity/(L) | 400L Aluminum tank |
| Electrics Type | 24V |
| Battery | 165Ah Maintenance-free battery |
| Cab Type | SHACMAN X3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, X3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo. |
