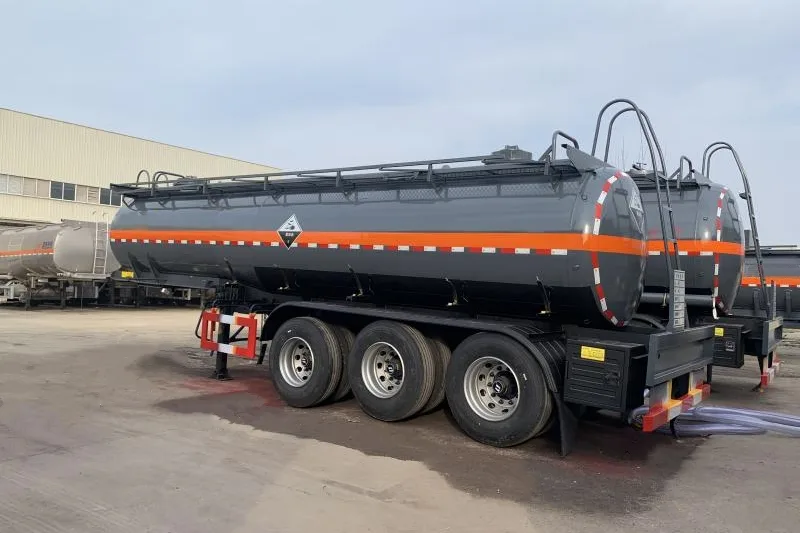

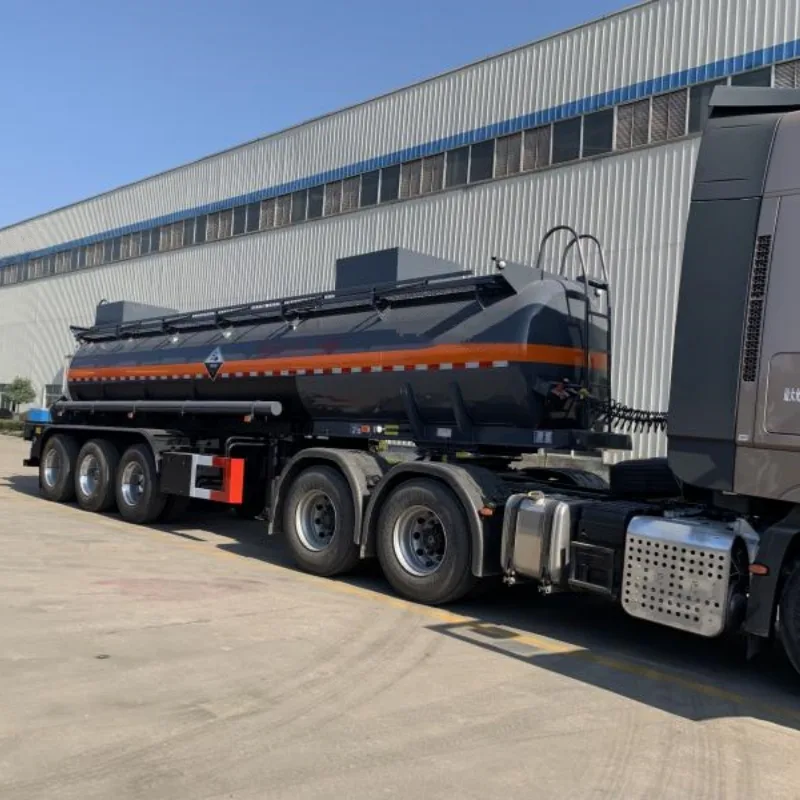

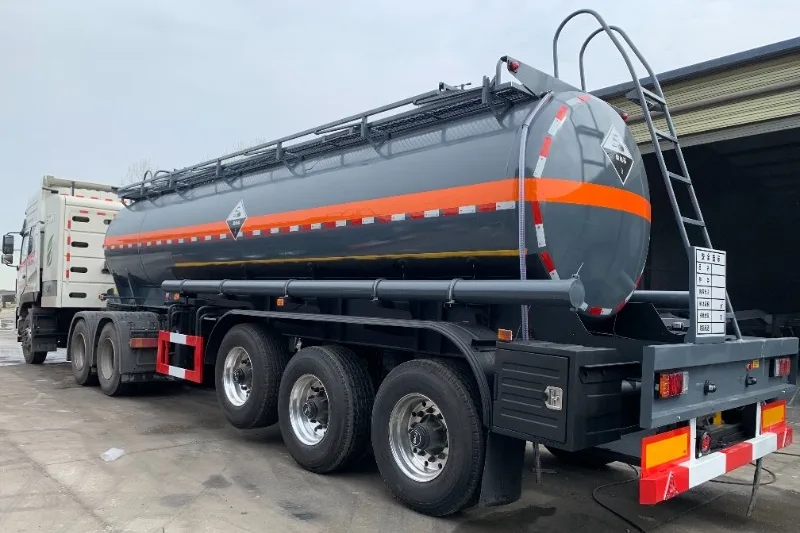

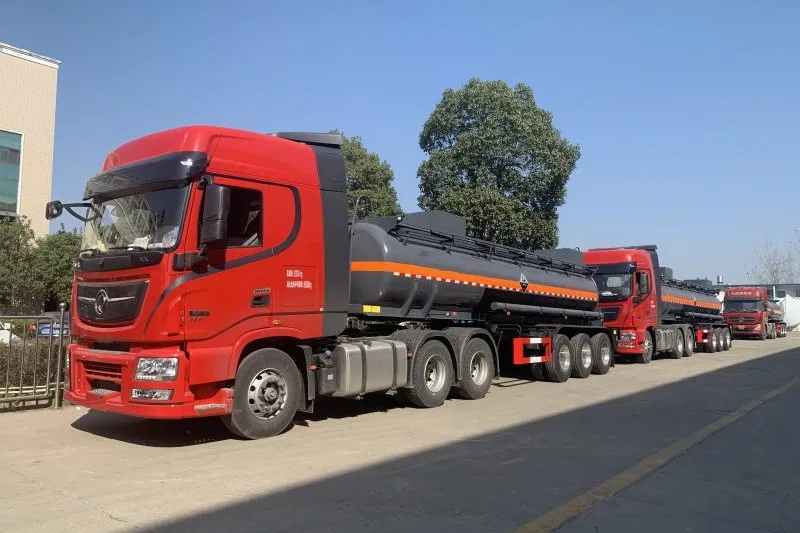

Tank transport semi-trailer for corrosive materials

Product Description

The tank semi-trailer transports hydrochloric acid, sulfuric acid and other anti-corrosive liquids. The tank body is anti-corrosive. To ensure the safety of the tank truck, we have built-in wave-breaking plates inside the tank body, explosion-proof manhole covers and emergency cut-off devices installed on the body. At the same time, partition boards can be installed inside the tank body to divide the tank body into multiple small warehouses, and each tank warehouse can be loaded and unloaded independently. We have introduced advanced production equipment to achieve low cost and high quality, and survive by quality. At the same time, our company has introduced excellent testing equipment to ensure that product testing is correct. The product is excellent. The tank body is formed in one go, is pressure-resistant and explosion-proof, and uses German automatic seamless welding technology, with good sealing and beautiful welding points.

The head adopts water pressure technology, which has stronger pressure-bearing and sealing effect: the head processing method adopts a flat plate formed by water pressure and then CNC cutting and edge spinning; it can have greater pressure-bearing capacity and stronger sealing effect.

Strict material selection and reasonable design: Made of high-strength steel, lightweight design, high load capacity, and excellent quality. The weight of the carriage is fully reduced under the load condition, and the structure is simple and applicable.

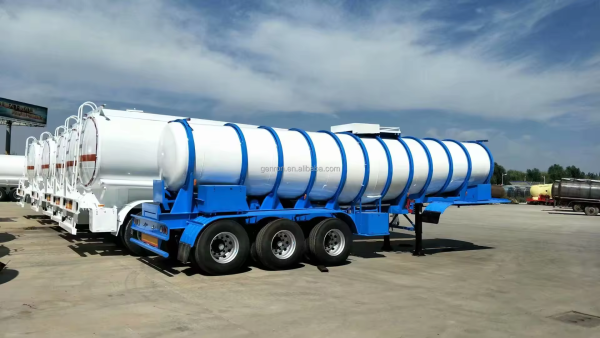

We are manufacturer providing customized service, designing according to every requirement of customers, we can customize different volume and compartments, we can also produce tanker trailers for transporting different liquids, such as fuel, gasoline, diesel, crude oil, asphalt, palm oil, JET A-1, water, liquid chemicals, edible oil, etc. According to the material, we have carbon steel, stainless steel, aluminum alloy tanker semi trailers. Our cooperation can be ODM or OEM mode.

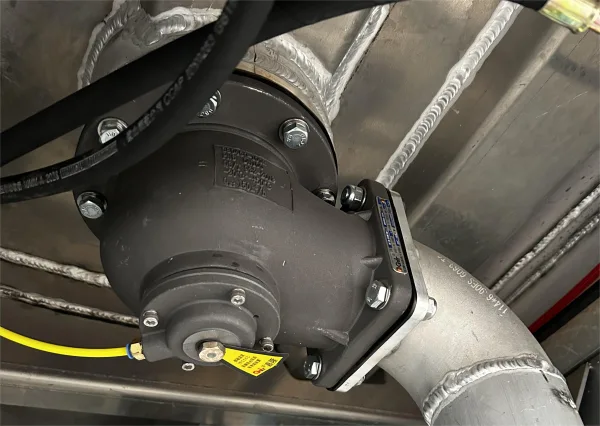

Explosion-proof manhole cover installed on tank top	We provide you with a full range of customized services	Install emergency shut-off valve at the bottom of the tank

The company has introduced a number of first-class domestic and foreign intelligent production lines for logistics equipment. It has a professional design and manufacturing team for containers and transport trailers. It has rich practical experience and advanced design concepts, and can provide customers with a full range of logistics equipment solutions.

Product Specifications

Product Name	Tank transport semi-trailer for corrosive materials
Vehicle size	9900×2490×3500mm
Total mass	40000kg
Tank volume	18.35m³
Rated load capacity	31800, 32500kg
Rated mass	8200, 7500kg
Tank cross section	Perfect circle, gooseneck half-hook
Material	Stainless steel, aluminum alloy, carbon steel
Number of axes	3
Wheelbase	4600+1310+1310mm
Axle load	-/24000(three-axis group)
Tire specifications	12R22.5 12PR
Rear track	1850/1850/1850mm
Loading medium	Sulfuric acid and other corrosive substances

Detailed Features

Dangerous goods transport semi-trailers are special vehicles with strict standards and regulations for their design and manufacture.
1. Body structure: The body structure of semi-trailers usually adopts lightweight design to reduce vehicle weight, improve fuel efficiency and driving stability.
2. Braking system: The braking system of semi-trailers usually adopts a dual-circuit pneumatic braking system, which can ensure driving safety under any circumstances.
3. Tires: The tires of semi-trailers usually adopt wear-resistant, pressure-resistant and high-temperature-resistant radial tires to ensure that the vehicle can maintain a stable driving state under various road conditions.

Product Application

Mainly used in power, chemical, metallurgy, construction and other industries, the products have high safety and reliability, can effectively protect the safety of goods and personnel, and can also efficiently complete transportation tasks.

Packaging and delivery

We have established trade cooperation with many countries in the world. Our professional vehicles have been successfully sold to Southeast Asia, the Middle East, Africa, South America and other regions, mainly through sea roll-on/roll-off ships or container transportation, with high stability and safety.

FAQ

1.Q: How to pay?
A: 30% of the total amount as a deposit in advance, and the remaining 70% before shipment. We will show you photos of the products and packaging before shipment.

2.Q: Can our company’s LOGO be printed on the tank?
A: Of course, you can send the company LOGO and we will design it.

3.Q: Do you test all goods before delivery?
A: Yes, we do 100% testing before delivery.

4.Q: Minimum order quantity?
A: One piece.

5.Q: What is the average delivery time?
A: It usually takes about 7-25 days. The specific delivery time depends on the goods and quantity of your order.

6.Q: Can you customize the semi-trailer according to our requirements?
A: Of course, our advantage is that we produce what you want.
