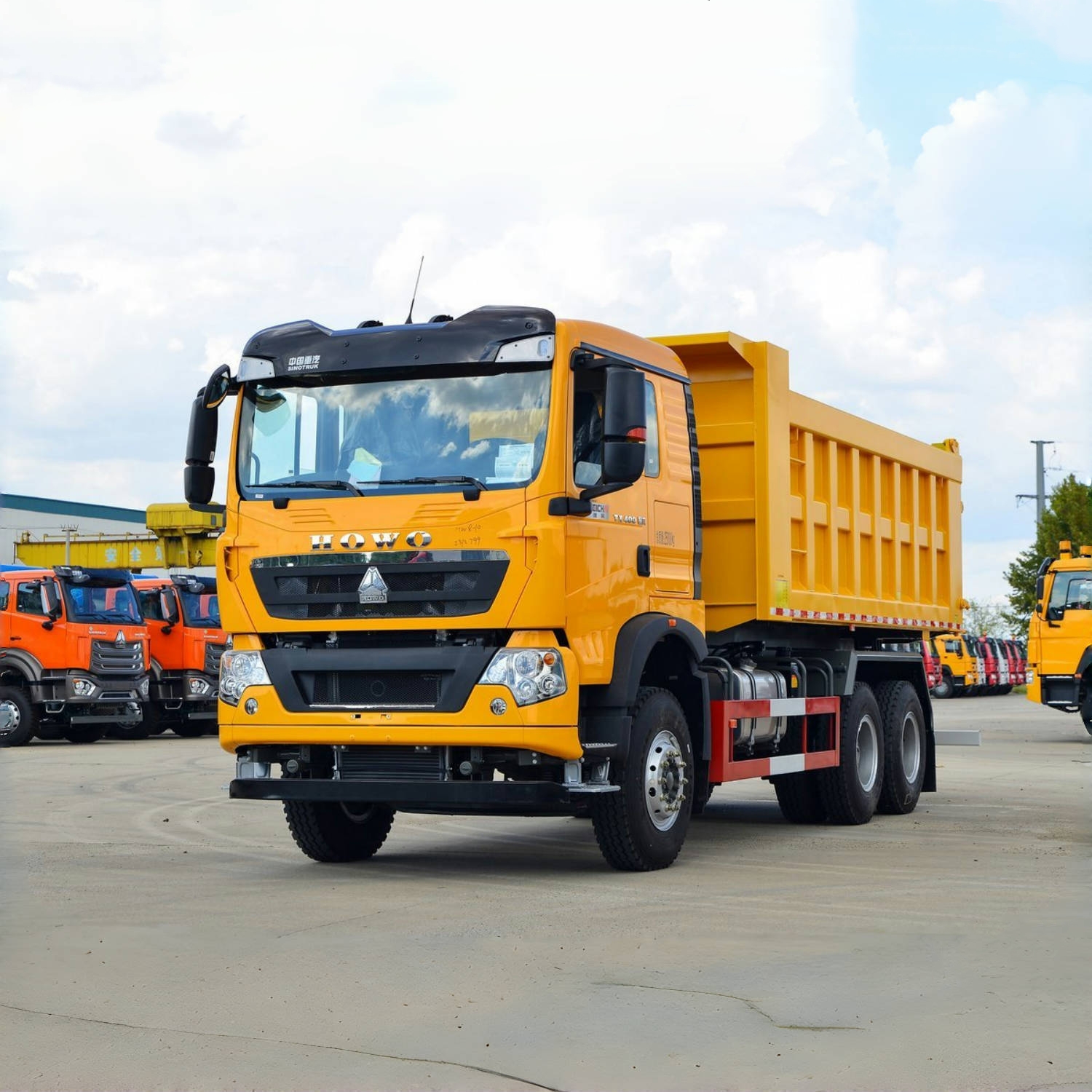

In terms of power system, SINOTRUK HOWO TX 400HP 6X4 Dump Truck is equipped with efficient Weichai WP10 series engine, which provides strong power and excellent fuel economy; the maximum torque reaches 1900N·m, ensuring good performance under various working conditions.
In terms of body design, the body width is 2.55 meters, providing stable driving performance; the dump truck design facilitates cargo loading and unloading and improves work efficiency. The high-strength suspension system is adopted to enhance the stability and comfort of the whole vehicle and adapt to various complex road conditions. It is suitable for a variety of scenarios such as construction sites, mines, logistics and transportation, and can meet the needs of heavy-load transportation.
Product Parameters
Drive type: 6X4
Engine model: Weichai WP10H400E62
Maximum horsepower: 400 horsepower
Gearbox model: Sinotruk HW19712CL
Forward gear: 12 gears
Cargo box length x width x height: 6.3 meters x 2.35 meters x 1.5 meters
Wheelbase: 4325+1350mm
Body length: 9.32 meters
Body width: 2.55 meters
Body height: 3.45 meters
Vehicle weight: 12.5 tons
Rated load: 12.37 tons
Total mass: 25 tons
Tonnage level: heavy truck
Approach/departure angle: 17 degrees/32 degrees
Fuel type: diesel
Maximum horsepower: 400 horsepower
Maximum output power: 294kW
Maximum torque: 1900N·m
Cargo box type: dump type
