Product Introduction

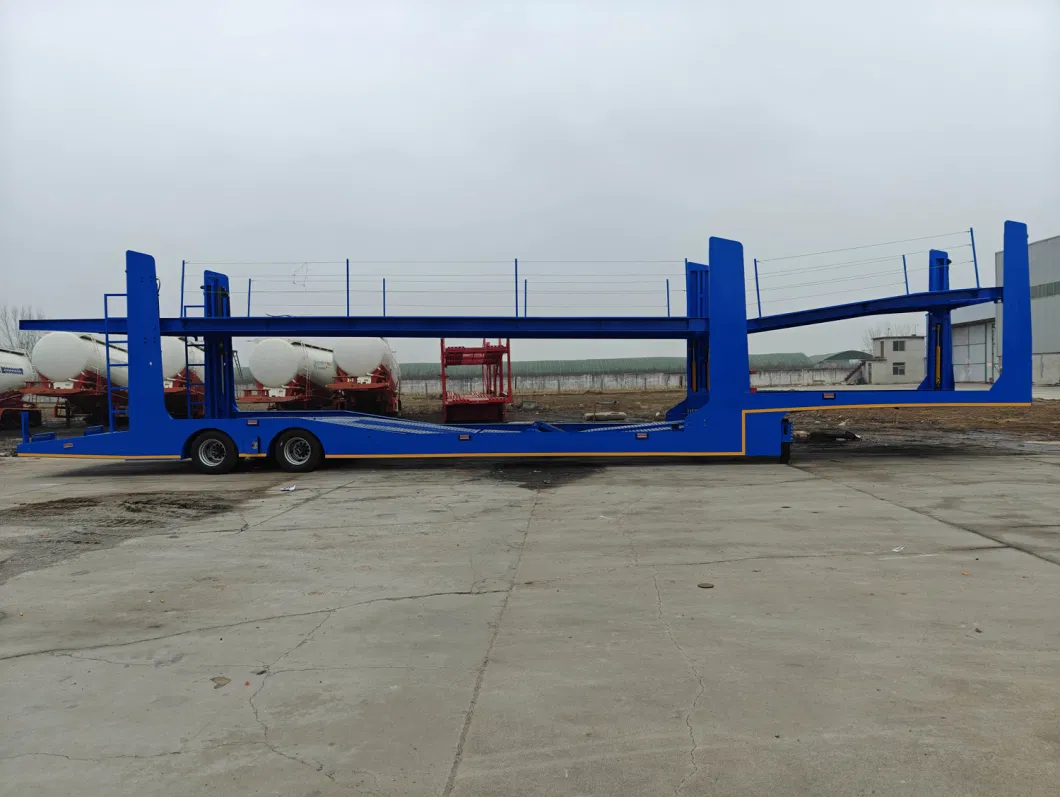

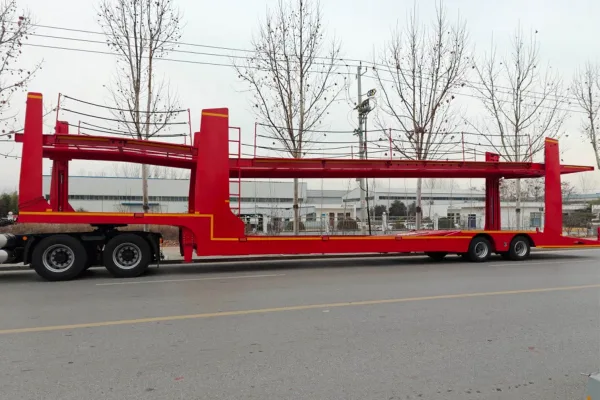

The car transporter can be made into different lengths according to customer requirements. The frame is welded I-beam, and the entire body is welded by automatic submerged arc welding and carbon dioxide gas shielded welding. After welding, shot blasting is carried out to eliminate welding stress and improve the adhesion of the paint surface, making the quality stable and the appearance beautiful. The vehicle is equipped with a tool box, spare tire rack, and drip brake system to improve the safety of vehicle transportation.
Automobile transport refers to vehicles specially used for transporting automobiles, most of which adopt low-bed design, with the characteristics of stable lifting, low center of gravity, good driving stability, etc. The vehicle can generally be divided into three types: skeleton type, fully enclosed type and semi-enclosed type.
Product Specifications
| Vehicle carrying capacity | 10 – 12 cars |
| Overall dimensions | 20000×2600×4200mm (length x width x height) |
| Axis brand | 13T×3pcs |
| Number of axes | 3 |
| Axis load | 13000kg x 3 |
| Suspension | Standard mechanical suspension |
| Main beam material | T700 high strength steel, beam height 500mm, top 10mm, middle 6mm, bottom 12mm |
| Tire type and number | Chinese brand tires 12R22.5, 6 pieces |
| Rim | 9.0×22.5 |
| Traction pin | 2 inches, diameter 50.8mm, load 16 tons |
| Toolbox | 1 standard |
| Outriggers | Standard 28 tons |
| Electrical System | 1. Voltage: 24v
2. Socket: 7-way (7-wire harness) 3. Tail lights with turn signals, brake lights and reflectors, side lights, etc. 4. A set of 6-core standard cables |
| color | According to customer requirements |
| Package | Polishing and waxing before shipment |
| Precautions | 1. The top platform can be adjusted up and down by hydraulic cylinders and chain blocks, each trailer has 4 cylinders
2. The top of the trailer can be lowered by approximately 20 cm and can be manually controlled when passing through height-restricted areas such as bridges |
Application areas
Automotive logistics companies: used for long-distance transportation of batches of cars, from car manufacturers to dealers or showrooms.
Auto sales and display: used to transport multiple cars from warehouses or other locations to sales points or display sites during car sales and display activities.
Car rental companies: used to transport multiple cars from different locations to rental centers to meet customer needs.
Rescue and towing services: used to transport damaged cars from the accident site or breakdown site to repair shops or other locations after vehicle breakdown or accidents.
Packaging and transportation
We have established trade cooperation with many countries in the world. Our professional vehicles have been successfully sold to Southeast Asia, the Middle East, Africa, South America and other regions. Our experienced team selects the most suitable transportation methods for different customers, including container, Rolls-Royce and bulk transportation, balancing safety and economic costs.
FAQ
1.Q: Which markets do you export your vehicles to?
A: Europe, North and South America, Southeast Asia, Africa, Oceania, Middle East countries, etc.
2.Q: What information should I tell you if I want to get a quotation?
A: Please tell us your purpose, road conditions, cargo type, cargo tonnage, trailer size, quantity, etc. The more information you provide, the more accurate the model and price you will get.
3.Q: Can we print our own brand on the vehicle?
A: Totally acceptable.
4.Q: Can we visit your factory before buying?
A: We welcome you to visit our factory at any time, and we will show you our production line.
5.Q: How can I get the price of your vehicle?
A: You can contact us through any contact information. Our personalized service staff will reply you within 24 hours.
