Product Description

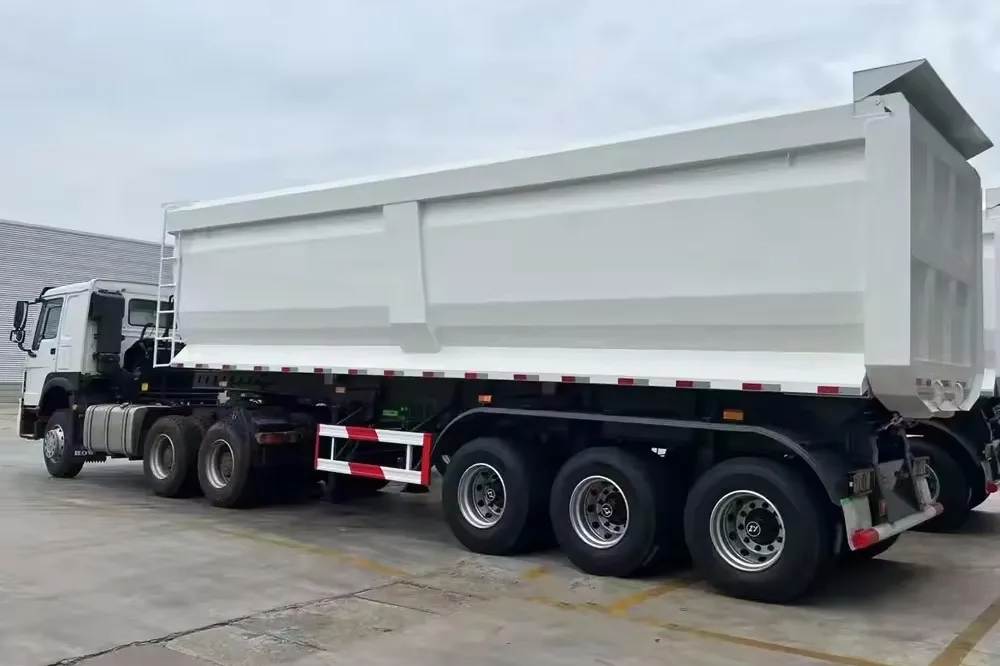

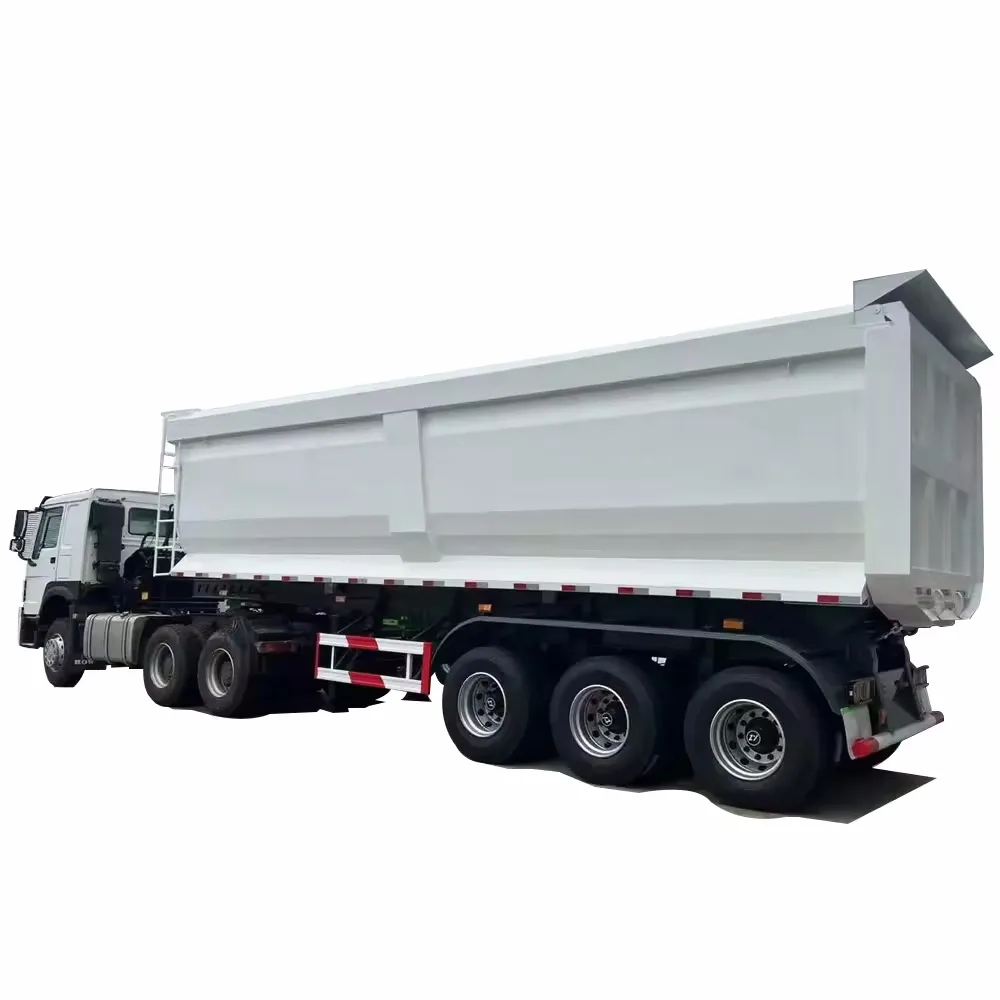

The dump semi-trailer adopts advanced design concept. For the dump trailer box, we use high-strength steel to make it durable when loading sand or small stones or rocks, especially in off-road conditions. The dump box size and U-shape, box thickness, Hyva hydraulic cylinder and optional accessories (two-piece spare tire rack, water tank, fuel tank, etc.) are all determined by different cargo needs, building modern transportation.
Packaging and Delivery
We have established trade cooperation with many countries in the world. Our professional vehicles have been successfully sold to Southeast Asia, the Middle East, Africa, South America and other regions. Our experienced team chooses the most suitable transportation method for different customers, including container, ro-ro and bulk transportation, balancing safety and economic cost.
Product Specifications
| project | Specification | project | Specification |
| brand | LIONKAR | Cargo Style | Rectangular/Circular |
| application | Coal/Stone/Sand and Gravel Loading | Front axle lift | Available |
| Dumping method | Rear dump | Main beam | Material Q345/T700 Height: 500mm Upper plate: 14mm Middle plate: 8mm Lower plate: 16mm |
| Loading capacity | 30 tons – 100 tons | tire | 11.00R20/12R222.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone |
| Number of axes | 2/3/4*13/16 tons FUWA/BPW |
Rim | 8.0/9.0*8/12/16 pieces, steel/aluminum |
| length | 11000mm | suspension | Mechanical/airbag type |
| width | 2500mm | Leaf spring | 90mm*13/16mm*10 pieces |
| high | 2800mm | Outriggers | 28 tons two-speed, JOST |
| Cylinder | HYVA (model is determined by cargo box length) | Traction pin | #50(2″)/#90(3.5″), JOST/other brands |
| Base plate thickness | 5mm | Toolbox | Steel/Aluminum |
| Cargo box thickness | 4mm |
Detailed Features
1. U-section box: U-section box design and analysis, larger cross-sectional area, lower center of gravity, more loading, easier, safer and more efficient unloading.
2. Material: Harden 450 or equivalent wear-resistant material box, T700 high-pressure beam, tare weight is 2000kg lighter than ordinary dump trucks, longer service life and lower fuel consumption.
3. Cylinder: FC and FE models are optional, with higher working pressure, helping maximum 45° tilt angle, reducing turnaround time with faster tearing speed, and increasing running time with longer maintenance intervals.
4. Fastening system: The rear door automatically locks and works efficiently, and the adjustable design maintains the appropriate situation, which is easy to maintain and replace.
Product Application
Our dump semi-trailers are designed to meet your heavy-duty transportation needs, providing unparalleled durability, efficiency and reliability. Its sturdy frame structure and high-strength steel can withstand the most severe operating conditions. The advanced hydraulic system ensures smooth and efficient dumping, minimizing downtime. Spacious cargo box capacity and optimized tailgate allow for quick and easy loading and unloading. In addition, our dump trailers are equipped with state-of-the-art safety features, including anti-lock brakes and electronic stability control, to ensure the safety of your cargo and operators. Whether you need to transport rocks, sand or other bulk materials, our dump trailers are your ideal choice for superior transportation efficiency.
Dump trailers are commonly used to transport bulk materials such as sand, coal, ore, etc. Its self-unloading function makes loading and unloading goods more convenient and efficient, and the goods can be dumped directly to where they are needed through the unloading port, such as construction sites, mines or other places where large amounts of bulk materials are required.
FAQ
1.Q: Can I buy samples of your products for testing?
A: Yes, no problem. Our minimum order quantity is 1 set.
2.Q: Can our company’s LOGO be printed on the tank?
A: Of course, you can send us your company LOGO and we will design it.
3.Q: Do you test all goods before delivery?
A: Yes, we do 100% test before delivery.
4.Q: Can we visit your factory before purchase?
A: We welcome you to visit our factory at any time, we will show you our production line.
5.Q: What is the average delivery time?
A: Usually it takes about 7-25 days. The specific delivery time depends on the goods and quantity of your order.
6.Q: Can you customize the semi-trailer according to our requirements?
A: Of course, our advantage is what you want, we produce what you want.
